The Juicer

Model a Lemon Squeezer based on the Reference Image provided. I took the following steps to model the squeezer: - Created a sphere polygon primitive and cut it in half (deleted edges) to make a hemisphere. -Scaled the hemisphere in the y direction. -Extruded Edges of the base of hemisphere to make base cylindrical vessel -Scaled alternate edges of the hemisphere to create blades. -Translated top vertices of hemisphere to make it pointed. -Created edge loops and using the multi-out tool, created the spout of the cylindrical vessel -Deleted faces to open spout.

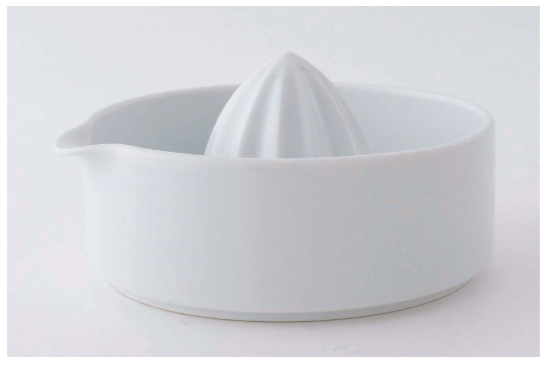

Reference Image

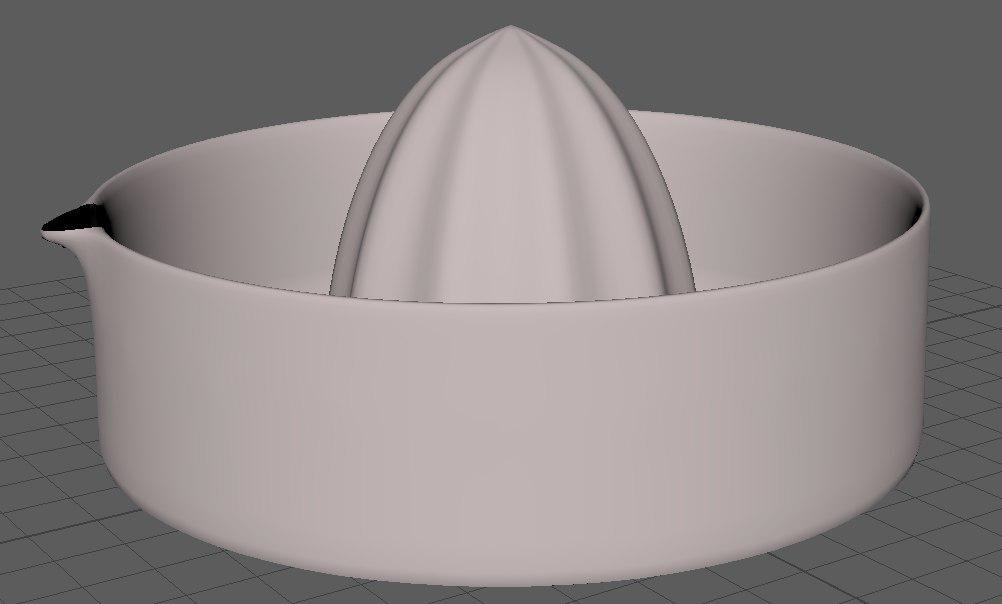

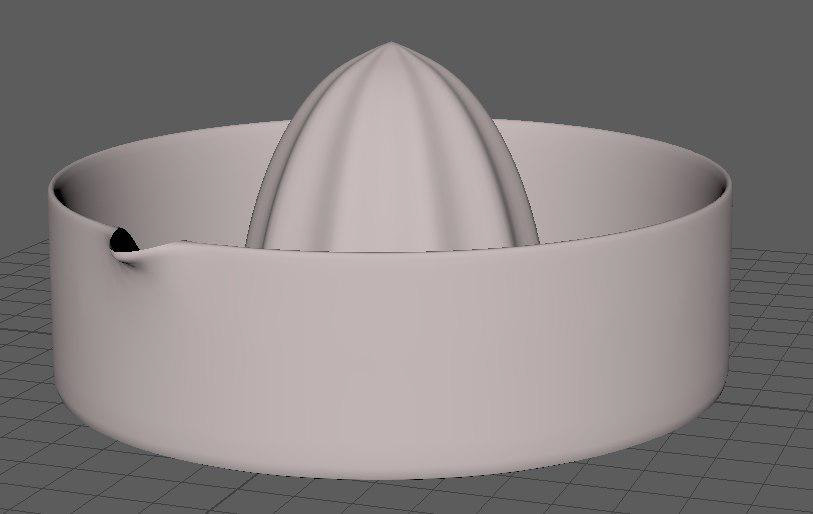

The following figures were modeled in Maya 2019

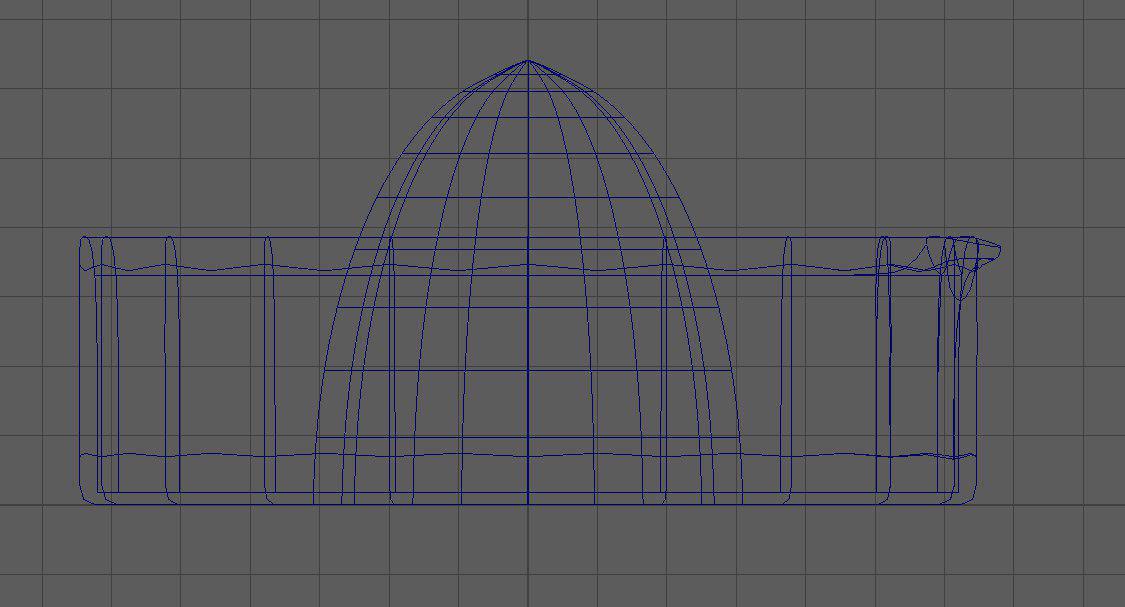

See WIRE-FRAME images below
